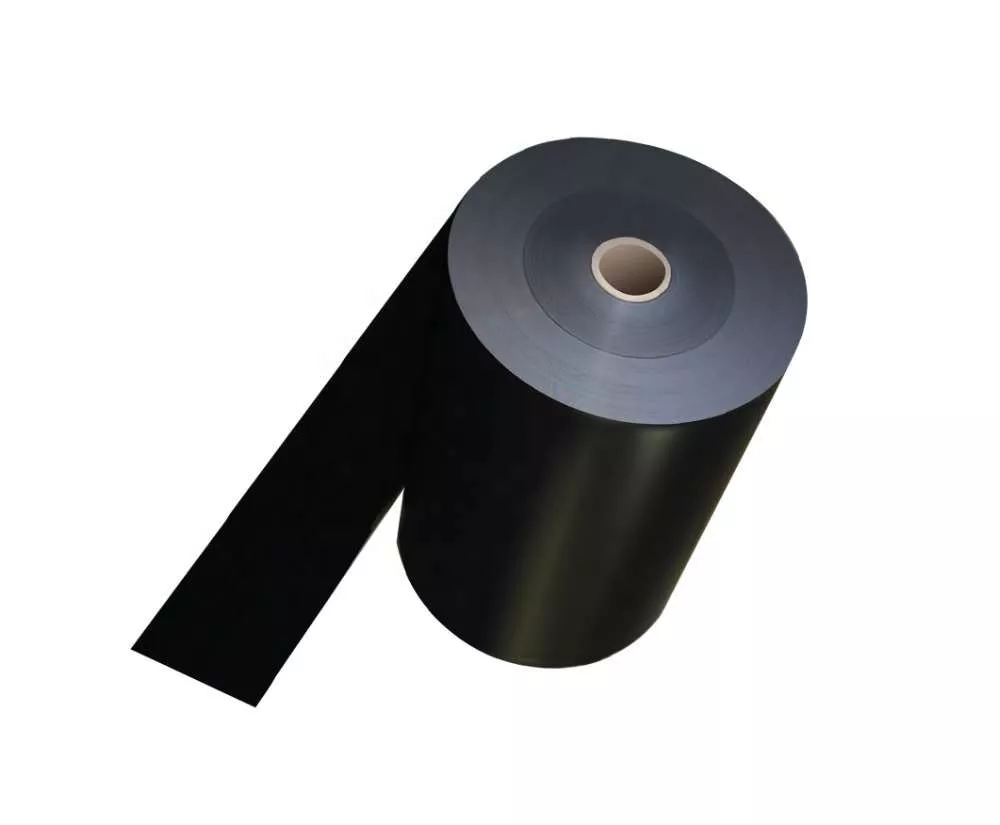

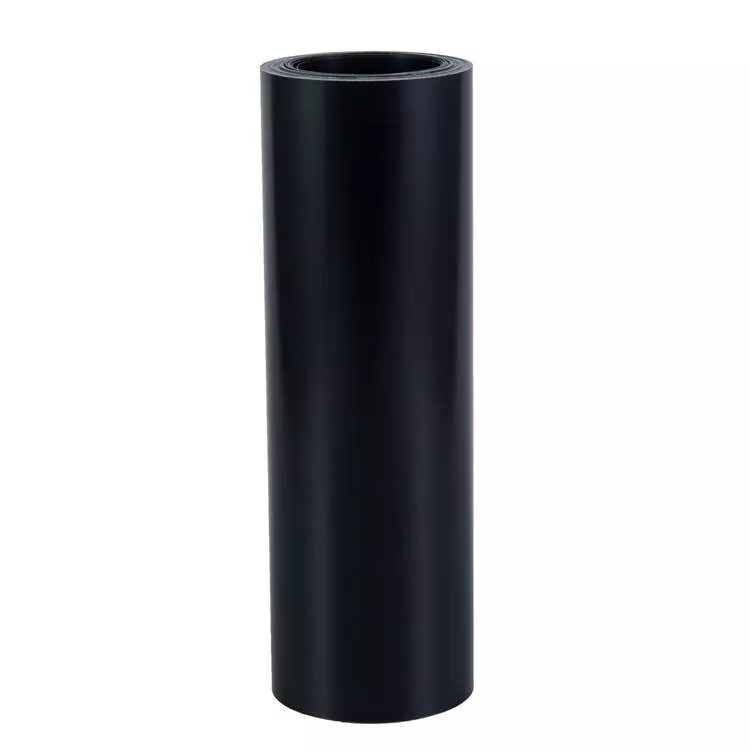

Semi-conductive HIPS sheet roll

Pulixin is an excellent and leading plastic sheet Manufacturer & factory in China. We have advanced technology and equipment, mature foreign trade and export experience, and have established good cooperative relations with customers in more than 60 countries. Free samples supply, OEM & ODM accepted

  • Brand: PULIXIN
  • Origin: Shanghai, China
  • MOQ: 5 tons
  • Thickness: 0.3~2mm
  • Width: 300~850mm
  • Application: Thermoforming
  • Send Inquiry


    Features of Semi-conductive HIPS sheet roll

    PS conductive sheet, PS printing conductive semi-conductive sheet

    Surface resistance: ultra-thin conductive treatment layer, the conductivity of 104 — 109, according to customer requirements to make the corresponding surface resistance;

    Property: stable conductive function, not with temperature and humidity changes can be reused or recycled without losing anti-static performance;

    Reliability: polymer synthesis technology to avoid adding errors or uneven coating, good processing, conductive treatment does not affect the performance of printing, molding;

    Cleanliness: PS printed products do not drop powder after blister, environmental protection, no harmful substances, no corrosive and volatile gas, clean;

    Flexibility: composite in a variety of materials, PS, PE, PP, etc., pujiang hexin plastic is a professional esd surface modification materials company, with independent research and development of high clean conductive technology, production of high clean, anti-static blister ps sheet

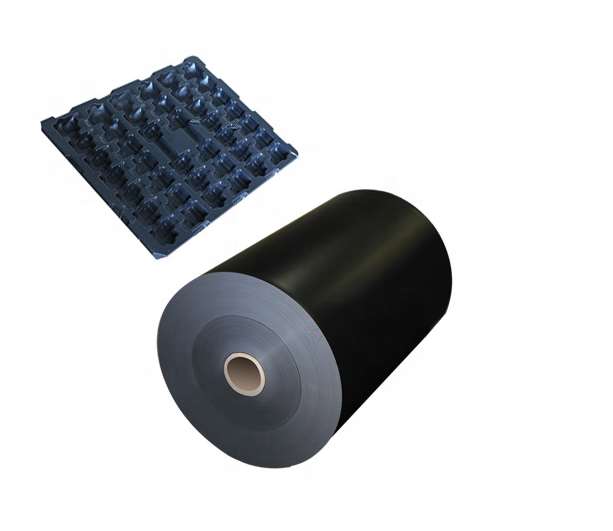

    semi-conductive HIPS sheet roll

    Specification Of Semi-conductive HIPS sheet roll

    Static electricity is a kind of static charge, or non-flowing charge, that forms when the charge accumulates on an object or surface.In the process of transportation, there is friction between the electronic components and the packaging material, resulting in electricity.When the current is greater than the load of electronic components, it is easy to break down components, damage items.

    Electrostatic sensors are exposed to areas of static electricity during storage and transportation.The usual method is to use electrostatic shielding bag and anti – static circulation box as protection.This method of electrostatic shielding can weaken the influence of external static electricity on electronic components, but the internal static electricity of electronic components is still not solved.

    The application of PS conductive sheet is to solve the static electricity inside components, especially for electronic components with circuit board components.The conductive sheet ensures that all elements are at the same potential under stable conditions, while dissipating the electrostatic charge that accidentally runs onto the packaging.HIPS (modified polystyrene) is one of the cheaper engineering plastics with good properties of toughness and support.PS conductive sheet material can not only solve the harm of static electricity, but also facilitate enterprises to realize pipeline production and improve production efficiency.

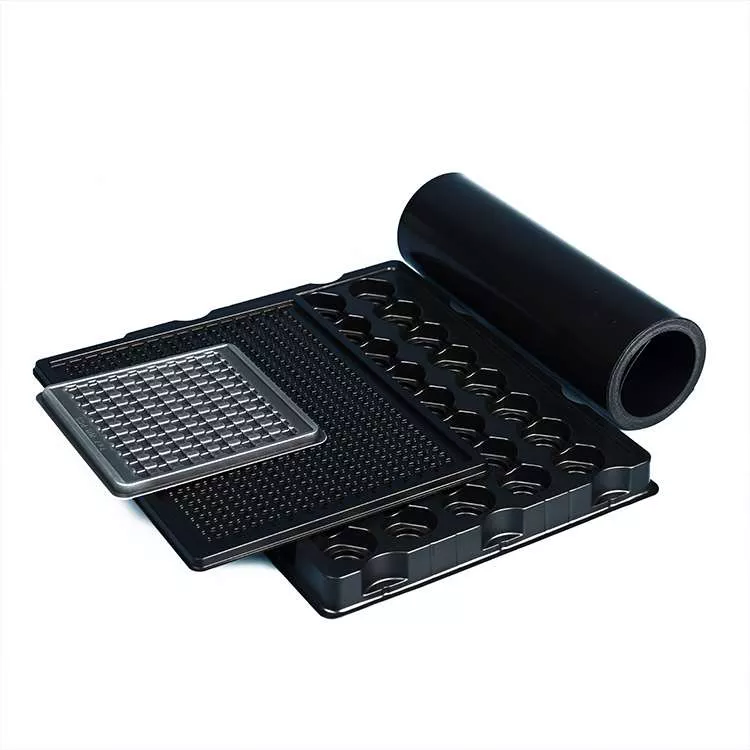

    conductive HIPS roll

    Product parameters

    Parameters of Semi-conductive HIPS sheet roll

    Test Item Test method Unit Properties
    Specific gravity ASTM D792 g/cm3 1.05
    Impact Strength          ASTM D256 mpa 35
    Tensile Strength ASTM D638 mpa 29
    Heat Deflection Temperature ASTM D648 85
    Flexural Strength ASTM D790 mpa 36
    COLOR Visual Inspection / Any color
