Home / Product / / Water Based Coating Antistatic PET Film For Thermoforming
 Water Based Coating Antistatic PET Film For Thermoforming-0 Water Based Coating Antistatic PET Film For Thermoforming-1 Water Based Coating Antistatic PET Film For Thermoforming-2 Water Based Coating Antistatic PET Film For Thermoforming-3

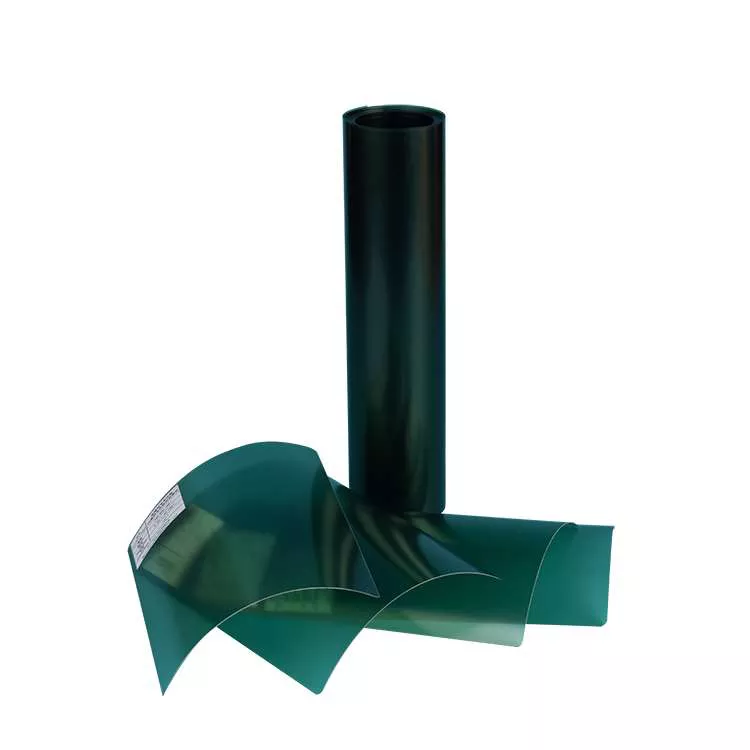

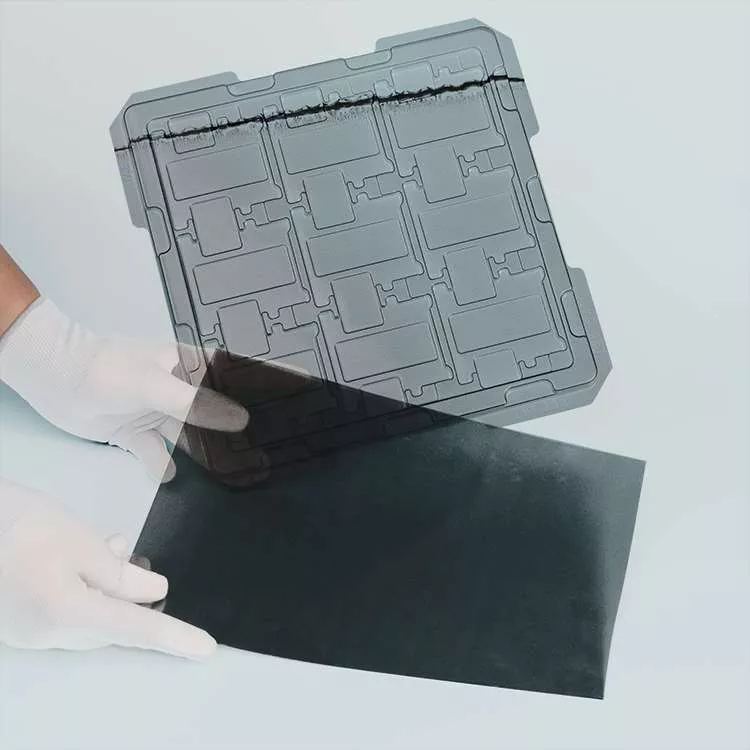

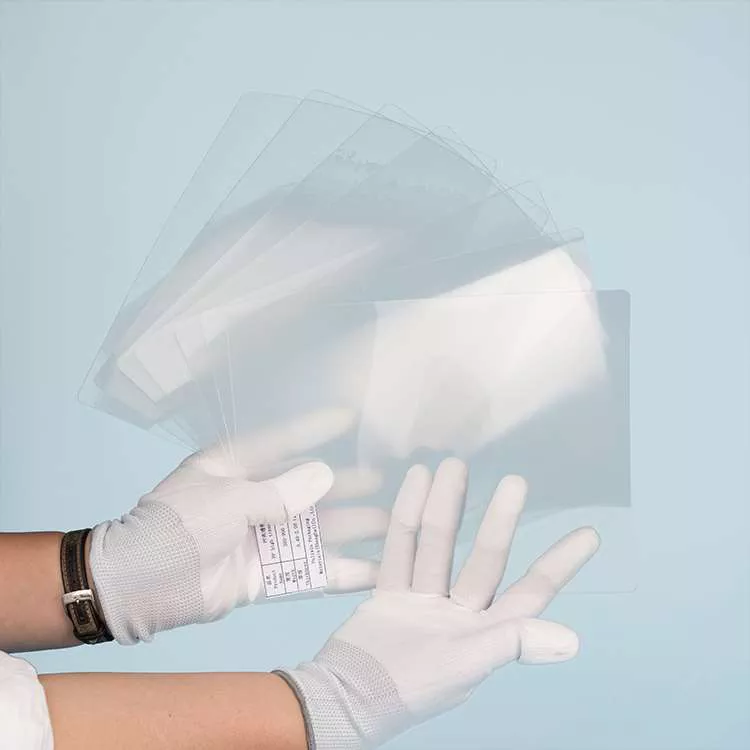

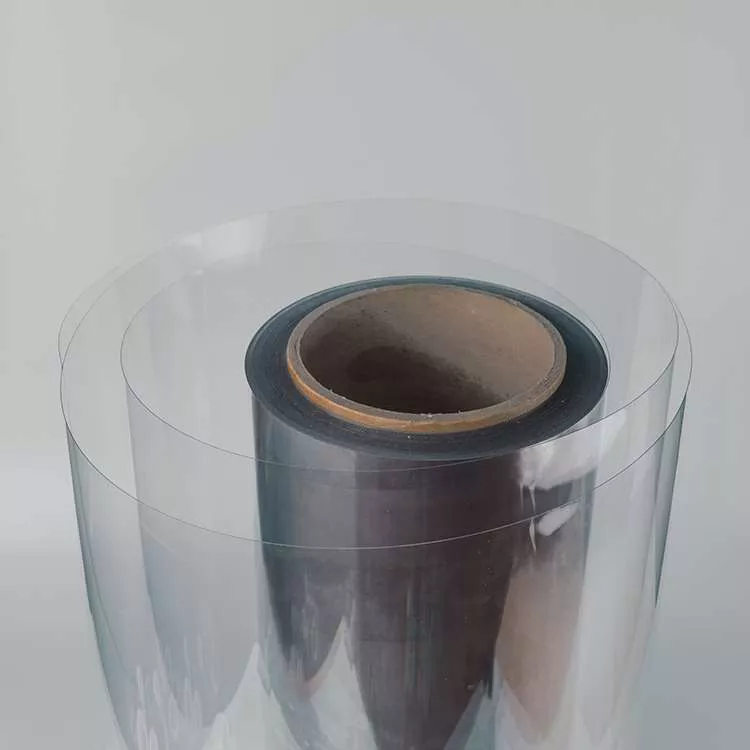

Water Based Coating Antistatic PET Film For Thermoforming

Pulixin is an excellent and leading plastic sheet Manufacturer & factory in China. We have advanced technology and equipment, mature foreign trade and export experience, and have established good cooperative relations with customers in more than 60 countries. Free samples supply, OEM & ODM accepted

  • Brand: PULIXIN
  • Origin: Shanghai, China
  • MOQ: 5 tons
  • Thickness: 0.18~1.8mm
  • Width: 300~1400mm
  • Application: Thermoforming
  • Send Inquiry


    Features Of Water Based Coating Antistatic PET Film
    Advantage Of Water Based Coating Antistatic PET Film

    1. High-speed automatic operation, fast painting speed, high production efficiency, production speed is generally about 100m / min, up to 244m / min
    2, PET film coating no paint mist, no paint mist splash, coating efficiency is close to 100%
    3. Both low-viscosity and high-viscosity coatings are suitable, and coatings of various thicknesses ranging from 3-5μm film to 300-500μm can be performed. Can accurately control the thickness of paint PET film, and the thickness is uniform
    4, The front and back of PET film can be painted at the same time

    Disadvantage Of Water Based Coating Antistatic PET Film

    1. Only suitable for ESD PET film flat painting, not for other shapes
    2. Because the roller coating machine adopts a unified coating circulating conveyance, recovery system, and a large amount of paint input, it is not suitable for small batch production of many varieties.
    3. If the coating process conditions are not properly controlled, the paint PET film is prone to roll marks.
    4. As the coating is transferred to the PET sheet roll surface of the coated object as a wet film on the surface of the roller, the solvent volatilizes quickly, and the viscosity of the coating easily changes during the roller coating process.

    Specification of Water Based Coating Antistatic PET Film


    1. Density: 1.34g/cm3
    2. Width: 300~900mm
    3. Thickness: 0.3~2.0mm
    4. Resistace value: 10^3~10^11Ω
    5. water based coating PET film
    6. Color: Any Color
    7. Inner Paper Core: 3′ or 6’
    8. Raw Material: 100% virgin and no silicon
    9. Hardness: Rigid
    10. Certificate: ISO9001, SGS,ISO14001
    11. MOQ: 3~5tons
    12. Advantage: resistance, antistatic, no dust and temperature resistance
    13. Temperature: 0℃-55℃
    14. Application: Thermoforming food packaging, electronic packaging, cosmetic packaging, medical packaging and hardware packaging.,etc.

    Product parameters

    Parameters of Water Based Coating Antistatic PET Film

    Specification Water Based Coating Antistatic PET Film
    Color Any color Application Electric packaging
    Food packaging  Cosmetic&Gifts.
    Width 300~900mm Certification SGS,ROHS
    Thickness 0.3~1.5mm Warranty 2 years
    Category Printing
    High cleanliness conductive
    Permanent Antistatic polymer
    common antistatic.,etc.
    Finished goods color Matte/Glossy
    Common colors.
    Resistance 10^3~10^11Ω MOQ 3 mt
    Laminating PP, PS, PET, etc. FOB Price About USD 2000/mt
    Packaging Export Plastic Pallet Port Ningbo/Shanghai

    Water Based Coating Antistatic PET Film


    Why Choose Pulixin

    PULIXIN is an excellent leading PP plastic sheet roll manufacturer in China. Our factory covers an area of ​​more than 10,000 square meters and has 4 rigid polypropylene sheet production lines with international advanced equipment. It can produce 3,000-5,000 tons of PP plastic sheets per month, and the maximum storage capacity exceeds 10,000 tons.
    High Level Factory
    high level factory
    1, 6000㎡ Area
    2, 10 co-extrusion lines
    3, 15 years experience
    4, 2300+ regular customers
    Considerate Service
    Considerate Service
    1, Quick reply to inquiries
    2, Free sample on paying the postage
    3, Strong capacity, short production and fast delivery
    4, Factory inspection acceptable
    5, OEM Support
    Strict Quality Control
    Strict Quality Control
    1, Thickness error:+-0.1mm
    2, Weight erroe:+-1kg
    3, Antistatic impedance: +-0.1Ω
    On Time Delivery
    On Time Delivery
    1, Production: 1days after prepayment
    2, Delivery: 5days after final payment
