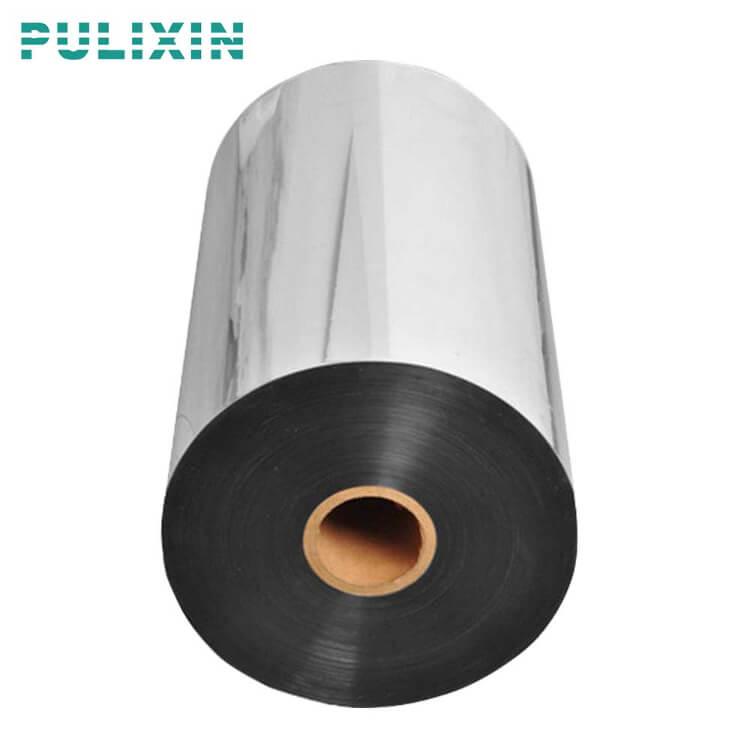

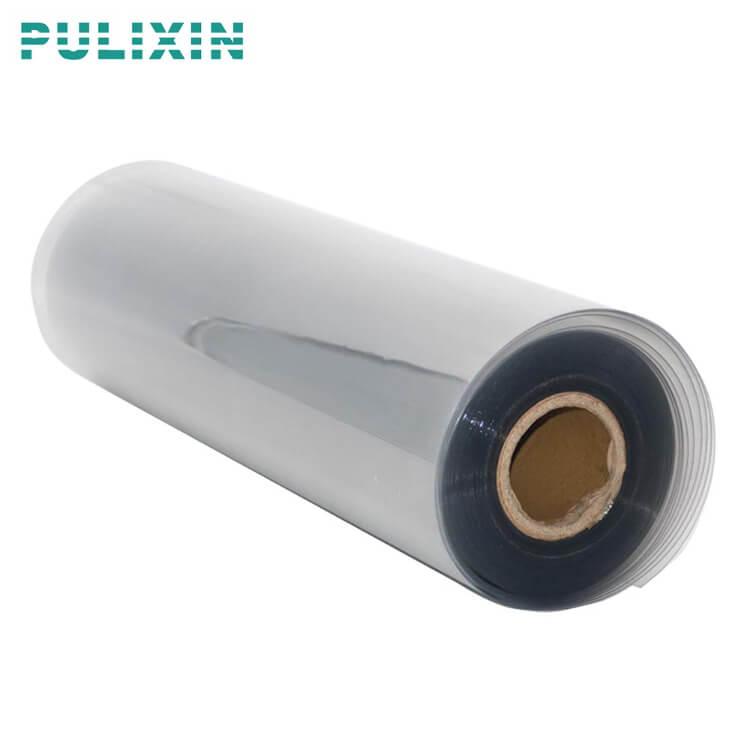

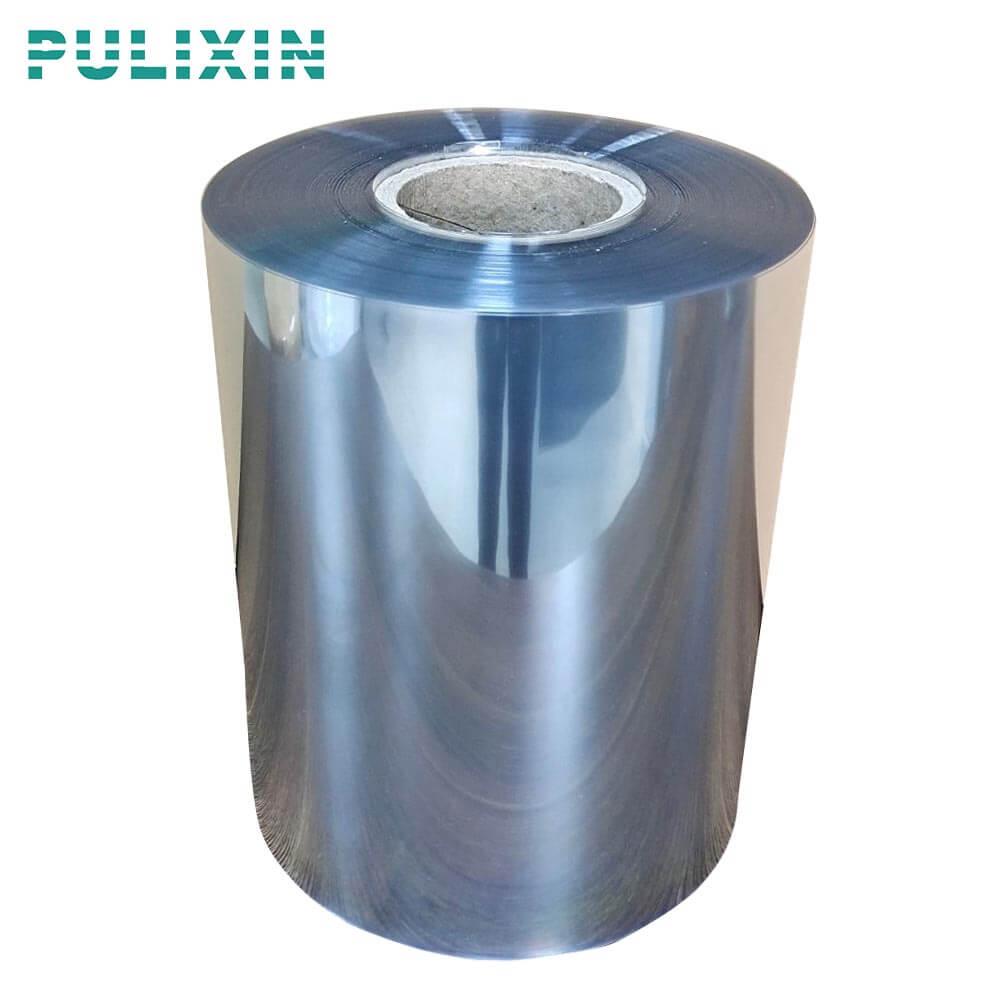

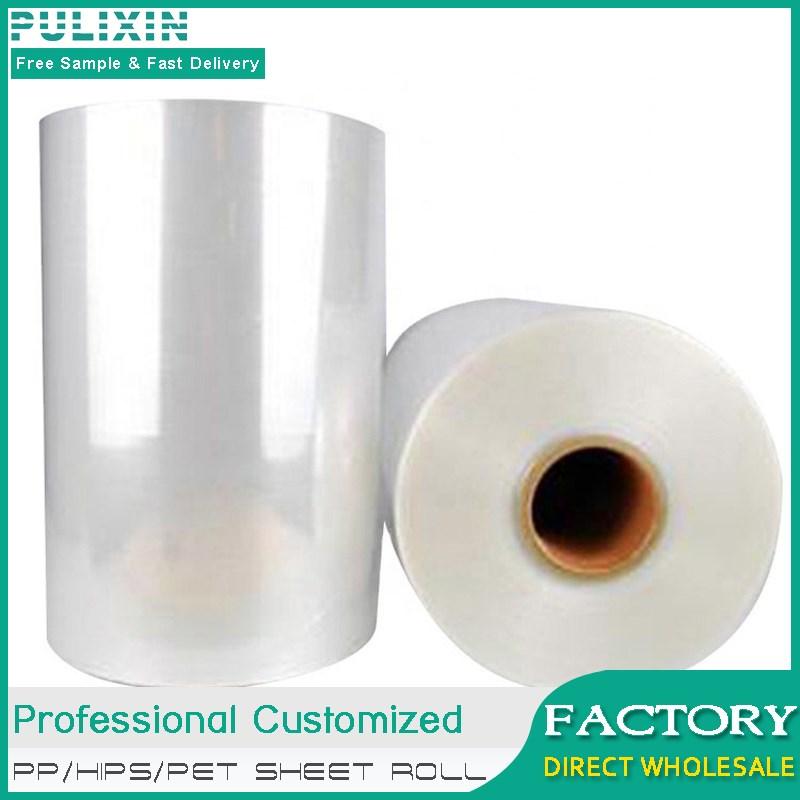

Thermoforming High Anti-Impact PET Plastic Sheet

Pulixin is an excellent and leading plastic sheet Manufacturer & factory in China. We have advanced technology and equipment, mature foreign trade and export experience, and have established good cooperative relations with customers in more than 60 countries. Free samples supply, OEM & ODM accepted

  • Brand: PULIXIN
  • Origin: Shanghai, China
  • MOQ: 5 tons
  • Thickness: 0.18~1.8mm
  • Width: 300~1400mm
  • Application: Thermoforming
  • Send Inquiry

    Introduction of Thermoforming High Anti-Impact PET Plastic Sheet

    Thermoforming is a widely used manufacturing process in which plastic sheets are heated and shaped into various forms and structures. One type of thermoformable plastic sheet that has gained significant popularity is the Thermoforming High Anti-Impact PET (Polyethylene Terephthalate) plastic sheet.

    Thermoforming High Anti-Impact PET plastic sheets are engineered to possess exceptional impact resistance properties, making them highly suitable for applications that require robust and durable materials. These sheets are specifically designed to withstand high levels of impact force without cracking, breaking, or deforming, making them ideal for demanding environments and applications where protection against impact is critical.

    The manufacturing process of Thermoforming High Anti-Impact PET plastic sheets involves extruding PET material, which is then cooled and solidified into flat sheets of varying thicknesses. These sheets are subsequently reheated during the thermoforming process, allowing them to become pliable and moldable. Through the application of heat and pressure, the sheets are then shaped into the desired forms using molds or dies.

    The key characteristic of Thermoforming High Anti-Impact PET plastic sheets is their ability to resist impact forces. This property is achieved through the addition of impact modifiers during the extrusion process, which enhance the toughness and durability of the PET material. As a result, these sheets can withstand heavy impacts and provide excellent protection against accidental drops, collisions, or other mechanical stresses.

    Features of Thermoforming High Anti-Impact PET Plastic Sheet

    Thermoforming High Anti-Impact PET plastic sheets offer several key features that make them a preferred choice for applications requiring impact resistance.

    1. Impact Resistance: Thermoforming High Anti-Impact PET plastic sheets are specifically engineered to withstand high levels of impact force.

    They possess exceptional toughness and durability, allowing them to resist cracking, breaking, or deforming even under significant impact stress.

    2. Durability: These sheets are highly durable, ensuring long-lasting performance.

    They can withstand repeated impacts without compromising their structural integrity, making them suitable for applications where longevity is essential.

    3. Lightweight: Thermoforming High Anti-Impact PET plastic sheets are lightweight, which provides advantages in various applications.

    Their low weight facilitates easier handling, transportation, and installation, while also reducing overall product weight in industries such as automotive, aerospace, and transportation.

    4. Transparency: PET plastic sheets have excellent clarity, allowing for high visibility and showcasing of products.

    This feature is particularly beneficial in packaging applications, where visibility and presentation of the packaged items are important.

    5. Chemical Resistance: Thermoforming High Anti-Impact PET plastic sheets exhibit good resistance to chemicals, including many solvents and oils.

    This characteristic makes them suitable for applications where exposure to chemical substances is expected, such as automotive components, industrial equipment, and medical devices.

    6. Versatility: These sheets can be easily thermoformed into a variety of complex shapes and sizes.

    They can adapt to different molding techniques and can be customized to meet specific design requirements, providing versatility in product development.

    7. Excellent Printability: Thermoforming High Anti-Impact PET plastic sheets can be printed on using various methods, including screen printing, digital printing, and offset printing.

    This feature allows for branding, labeling, and decorative designs to be applied directly onto the sheet, enhancing product aesthetics.

    8. Recyclability: PET plastic is widely recognized for its recyclability.

    Thermoforming High Anti-Impact PET plastic sheets can be recycled and reused, contributing to sustainable manufacturing practices and reducing environmental impact.

    Thermoforming High Anti-Impact PET Plastic Sheet
    Thermoforming High Anti-Impact PET Plastic Sheet
    Thermoforming High Anti-Impact PET Plastic Sheet

    Parameters of Thermoforming High Anti-Impact PET Plastic Sheet

    Product NameThermoforming High Anti-Impact PET Plastic Sheet
    Material PET
    Color Opaque or Tranaparent in Any Color
    Thickness Tolerance According to GB (higher than GB)
    Application Vacuum forming packaging, Printing, Bending, Folding box, Cards,
    Reatures – High temperature resistance, not easily melted;
    – Easy to peel off and no residue;
    – Printable, good inking effect;
    – Widely used in food and drug industry;
    Special TreatmnetMetalized, Anti-UV, Waterproof, Antistatic, Anti-fog, Frosted, Cold resistance, Heat resistance, Double-sided Matte, Conductive;
    Sample Dliver Time 3-7 days
    Mass Production Time 3-15 days depend on order quantity
    Properties Method(ASTM) Unit APET PETG GAG
    Melting Point (DSC) 251 245
    Glass Transition Temperature (DSC) 71 74 72
    Deflection Temperature (DSC) 65 74 70
    Shrinkage
    90℃ Horizonal D1204 % 1.2 9 5
    Vertical 0.5 0.3 0.4
    110℃ Horizonal 5 4.4 4.7
    Vertical 2.3 2.3 2.3
    Specific Gravity D792 g/cm³ 1.35 1.3 1.34
    Water Absorption D570 % 0.7 0.66 0.73
    Tensile Strength At Break D638 psi 8900 7890 8280
    Elongation At Break D638 % 471 6 168
    Tensile Modulus D638 10³ psi 839 618 721
    Hardness (Rockwell) D785 R 70 74 71
    Impact Strength (Dart) D1790 J/M 7200 6900 7000
    Flexural Strength
    Horizonal D790 psi 11200 7980 10550
    Vertical 10800 7980 10230
    Flexural Modulus
    Horizonal D790 10³ psi 731 500 684
    Vertical 719 583 691

    Application of Thermoforming High Anti-Impact PET Plastic Sheet

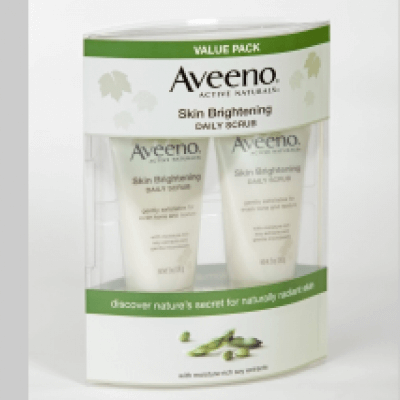

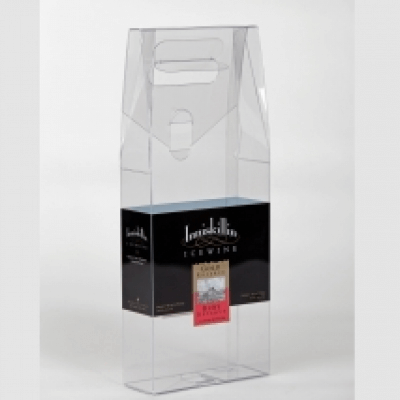

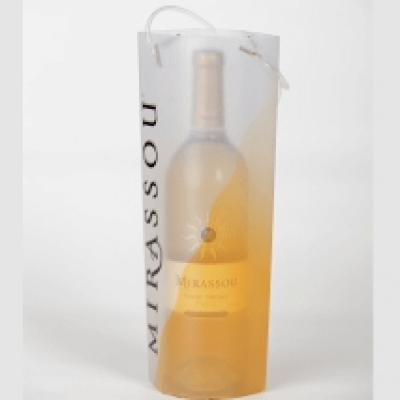

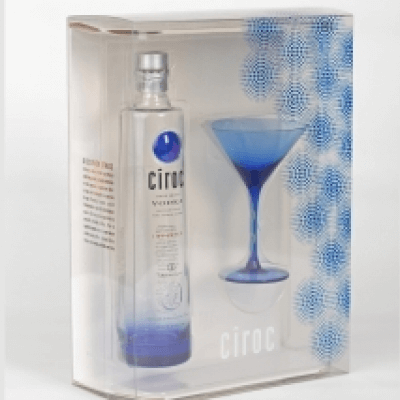

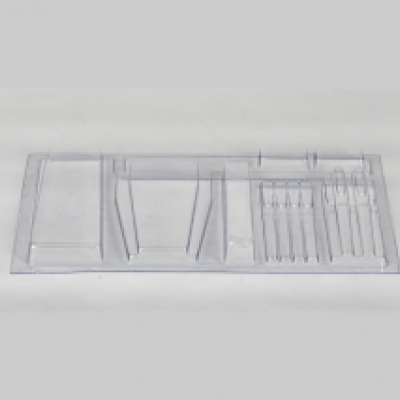

    Thermoforming High Anti-Impact PET plastic sheets are widely used in packaging applications that require robust and protective packaging solutions. They are utilized for creating blister packs, clamshells, trays, and other forms of packaging for delicate or fragile products. The impact resistance of these sheets helps safeguard the packaged items during shipping and handling.

    Manufacture of Thermoforming High Anti-Impact PET Plastic Sheet

    Pulixin Packaging Materials (Shanghai) Co., Ltd. is a Manufacturer & Exporter of thermoforming high anti-impact Pet plastic sheet, professionally supplies all kinds of Rigid PET Sheet,PET Plastic usually divided into APET, PETG, GAG and RPET and mainly used for thermoforming, vacuum forming & blister packaging.

    We have passed a variety of international certifications and obtained relevant certificates like ISO, RoHS, SGS, FDA and GRS. Our PET Plastic exported to 40+ countries Distribute in America, Europe, Africa, Southeast Asia etc.

    We should be able to offer many other products besides pet plastic sheets. For example: PET plastic sheet, PP plastic sheet, PS plastic sheet and other related thermal blister products.

    If you want to know more information, please click here to consult us. Our sales manager will contact you soon, looking forward to our cooperation. Your truest friend.
